3-794680-6
Manufacturer:
TE Connectivity
Mfr.Part #:
3-794680-6
Datasheet:
Description:

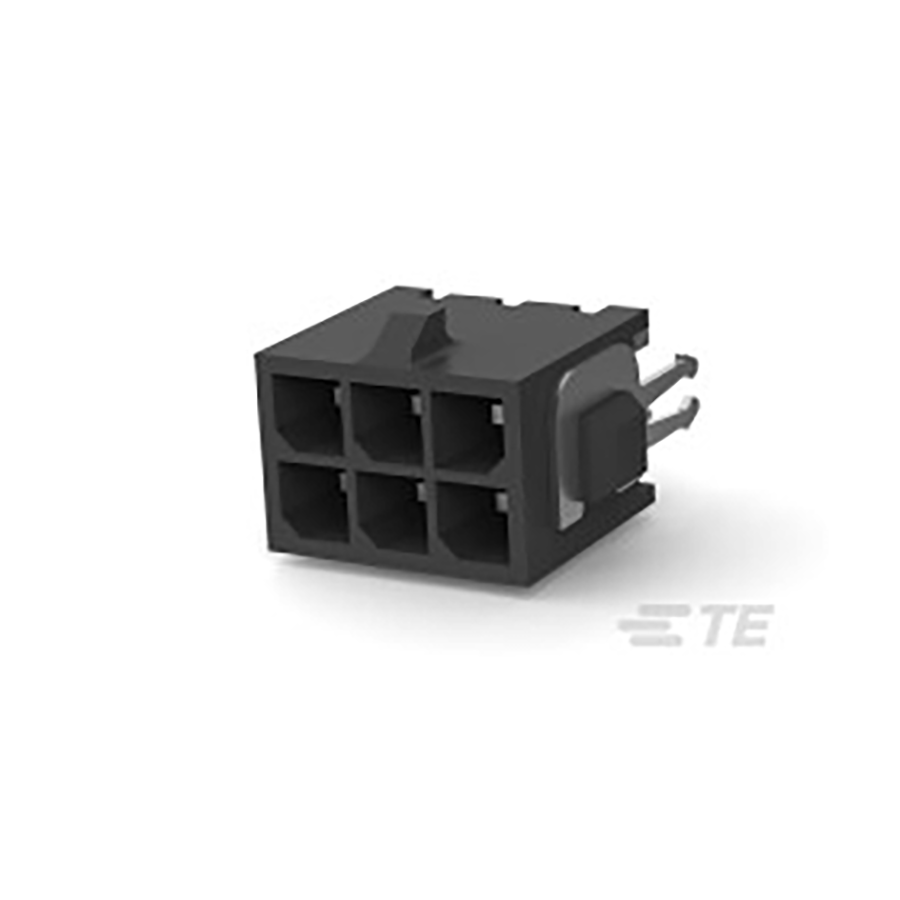

Headers and Wire Housings Through Hole Header Number of Positions:6 Pitch:2.9972 mm
| Parameter | Value |
|---|---|
| Length | 13 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 9.24 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.9972 mm |
| Number of Terminals | 6 |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 5 A |
| Housing Color | Black |
| Plating | Tin |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Number of Power Positions | 6 |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length | 3.18 mm |
